Description

Standard Features

• Electronic filling control system supported with 24-bit ADC.
• Class III type stainless steel weighing system with load cells
• Dry type Pneumatic conditioner, piston and valves
• PLC controlled electrical power and control system.
• Touchscreen LCD user interface.
• Easily adjustable filling set values by the operator.
• Number of programmable bags
• Easy calibration. Possibility of multiple prescriptions suitable for the product type.
• All surfaces are electrostatic powder painted in accordance with the food codex.
• Raw material intake hopper with 800 lt capacity and level control before weighing.
• Sealed weighing chamber with high discharge capacity, connected to load cells with adjustable arms.
• 12-13 fillings per minute per 50 kg.
• Height adjustable sewing machine column.
• Height-adjustable, speed-adjustable conveyor belt with hydraulic crown.
• Height and balance adjustable chassis column
• Easy to install, modular strong body and chassis.
• Aesthetic appearance and corresponding low maintenance, stable operation.

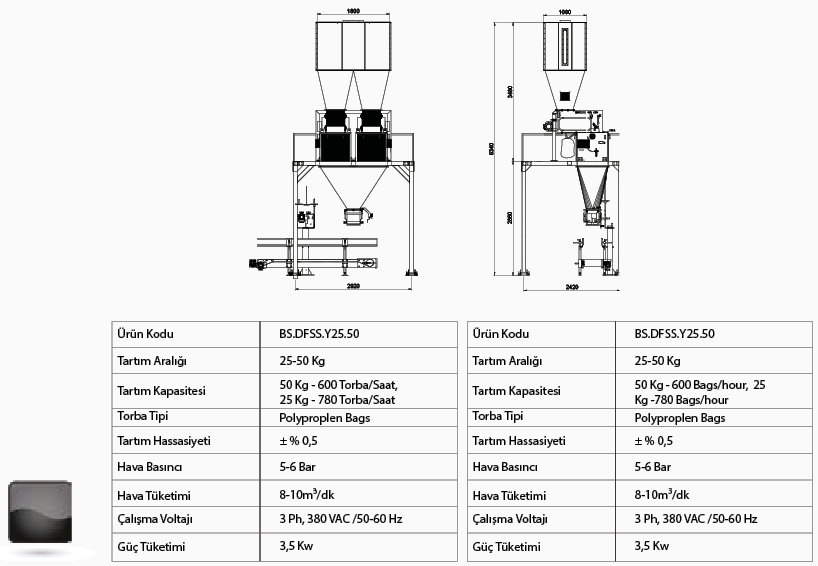

Product Code BS.DFSS.Y25.50
Weighing Range 25-50 Kg
Weighing Capacity 50 Kg – 600 Bags/Hour, 25 Kg – 780 Bags/Hour
Bag Type Polypropylene Bags
Weighing Accuracy ± 0.5%
Air Pressure 5-6 Bar
Air Requirement 8-10m³/min
Voltage Requirement 3 Ph, 380 VAC /50-60 Hz
Power Consumption 3,5 Kw
