Description

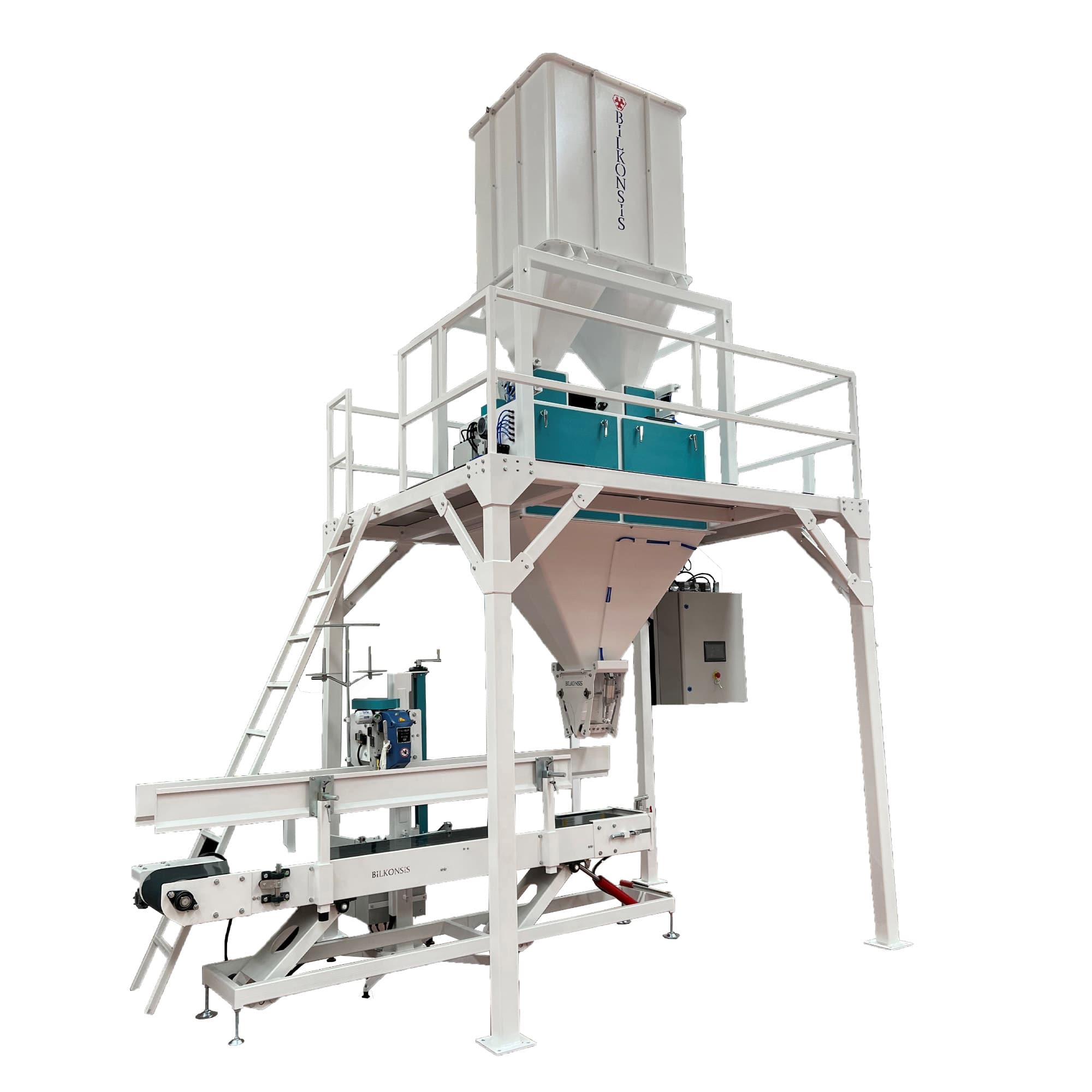

Grain Packing Machine Standart Properties

• Electronic filling control system supported with 24 bit ADC.
• Equipped with Class III type stainless steel loadcells.
• High speed gravity feeder
• Dry type pneumatic conditioners, pistons, valves and fittings.
• PLC controlled power and command control system cubicles.
• Equipped with touch screen user interface system
• Easy adjustable set value entry by operator.
• Programmable bag amount set.
• Easy weight calibration and multiple recipe application according to product type.
• All surfaces are trated and coated by powder die in accordance to food codex.
• 960 lt capacity, fill end discharge level controlled material entry stock bin.
• High discharging capacity, high leakage insulated weigher bin. It is connected to loadcells by adjustable rods.
• At 50 kg filling mode 13-14 bag filling amount in a minute.
• Speed controlled transfer band with hydrolic manual height adjuster.
• Height adjustable chassis foots
• Modular and easy installable scale body and scale chassis.
• Aestetic, low maintenance required, stabile running
• Height adjustable sewing column.
