Description
| Product Code | – |
| Weighing Range | – |
| Weighing Accuracy | – |
| Bag Type | – |
| Weighing Capacity | – |
| Air Pressure | – |
| Air Consumption | – |
| Power Supply | – |
| Total Power | – |
| Feeding Type | – |

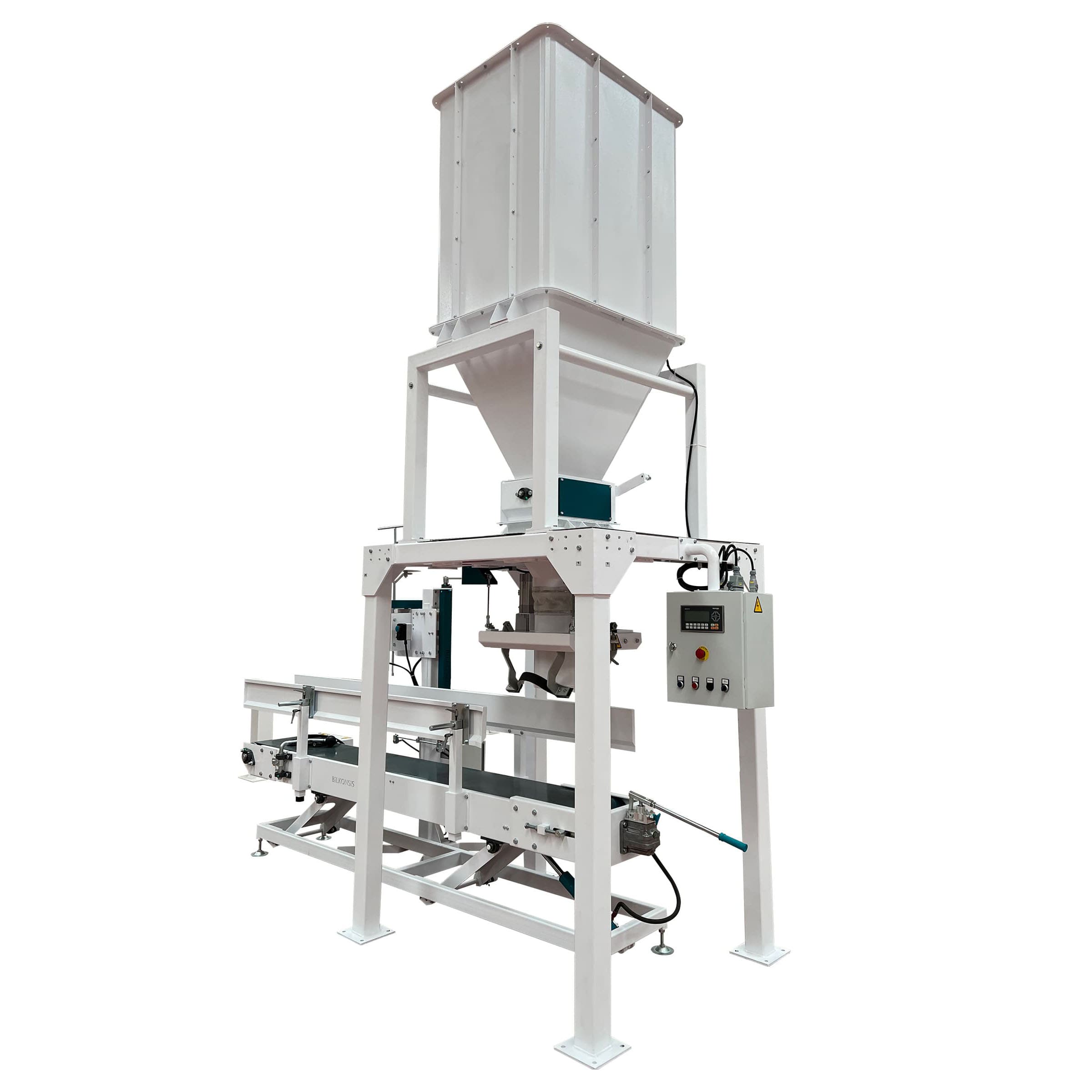

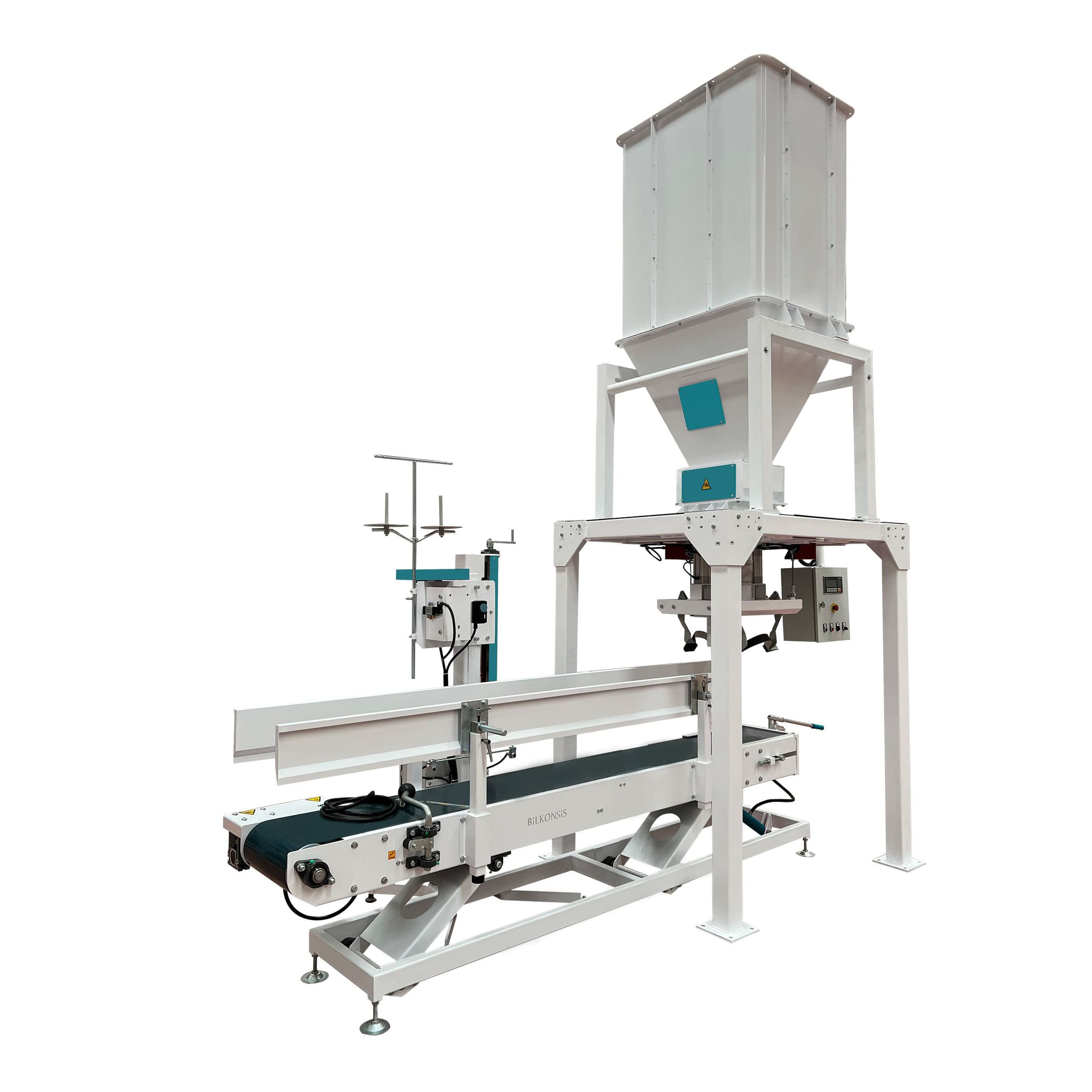

Granular Packing Machine Standard Features
Product Code – BS.GFW.B25.50
Weighing Range – 10-50 Kg
Weighing Capacity – 25 Kg – 420 Bags/hour, 50 Kg – 360 Bags/hour
Bag Type Polyproplen Bags
Weighing Accuracy ± % 0,5
Air Pressure 6-8 Bar
Air Consumption 120 m3/dk
Power Supply 3 Ph, 380 VAC /50-60 Hz
Total Power 1,12 Kw
Standard Features
- Filling weighing system supported by 24-bit ADC.
- Equipped with Class III type stainless steel loadcells.
- Dry type pneumatic conditioners, pistons, valves and fittings.
- PLC controlled power and command control system cubicles.
- Equipped with touch screen user interface system
- Easy adjustable set value entry by operator.
- Programmable bag amount set.
- Easy weight calibration and multy recipe application according to product type.
- All surfaces are trated and coated by powder die in accordance to food codex.
- 900 lt capacity, fill end discharge level controlled material entry stock bin.
- High discharging capacity, high leakage insulated weigher bin. It is connected to loadcells by adjustable rods
- At 50 kg filling mode 6 bag filling amount in a minute.
- Speed controlled transfer band with hydrolic manual height adjuster.
- Height adjustable chassis foots
- Height adjustable sewing column.
- Modular and easy installable scale body and scale chassis.
- Aestetic, low maintenance required, stabile running
