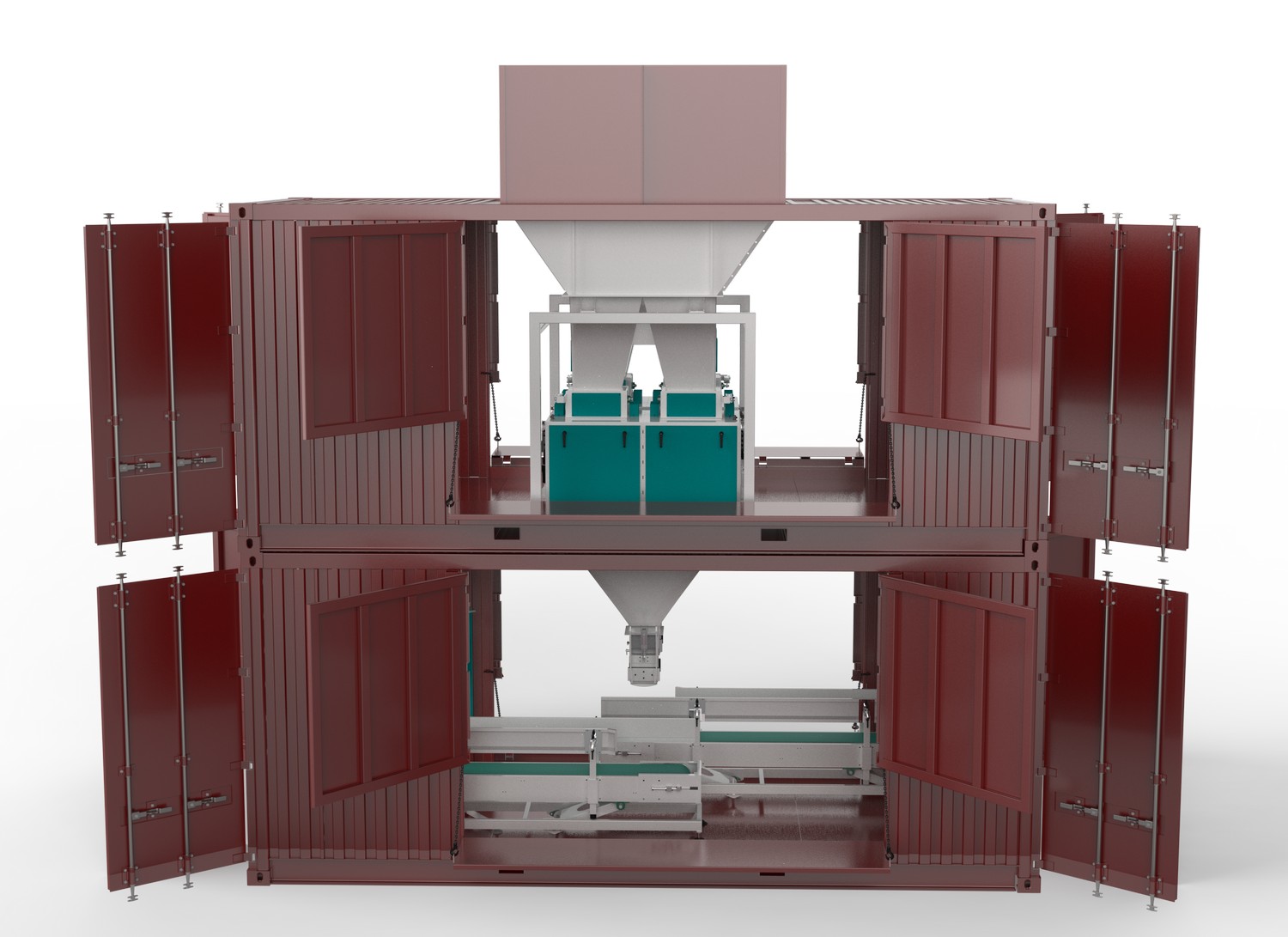

Container Packing System

Description

Product Code	BS. PORT.25.50
Weighing Range	25 – 50 Kg
Weighing Accuracy	± % 0.2
Bag Type	Polypropylene Bag
Weighing Capacity	25 Kg – 950 Bags/Hour, 50 Kg – 840 Bags/Hour
Air Pressure	5-6 Bar
Air Consumption	367.2 Liter/Minute
Power Supply	3 Ph, 380 VAC /50-60 Hz
Total Power	2.24 Kw
Feeding Type	Free-fall

Standard Features

• Double fill single spout 25-50 kg granule packing scale in two line
• At 25 kg filling mode 14-16 bag filling amount per a minute.
• Packing Speed: 840-950bags/hour per line
• Electronic filling control system supported with 24 bit ADC.
• Equipped with Class III type stainless steel loadcells.
• Dry type pneumatic conditioners, pistons, valves and fittings.
• PLC controlled power and command control system cubicles.
• Equipped with touch screen user interface system
• Easy adjustable set value entry by operator.
• Programmable bag amount set.
• Easy weight calibration and multy recipe application according to product type.
• All surfaces are trated and coated by powder die in accordance to food codex.
• 1000 lt capacity, fill end discharge level controlled material entry stock bin.
• High discharging capacity, high leakage insulated weigher bin. It is connected to loadcells by adjustable rods.
• Speed controlled transfer band with hydrolic manual height adjuster.
• Height adjustable chassis foots
• Modular and easy installable scale body and scale chassis.
• Aestetic, low maintenance required, stabile running
• Height adjustable sewing column.
